JM38510 11405BGA Operational Amplifiers Op Amp Integrated Circuit Chip PM156AJ6

Product Categories
Walton Electronics Co., Ltd.
Contact Now

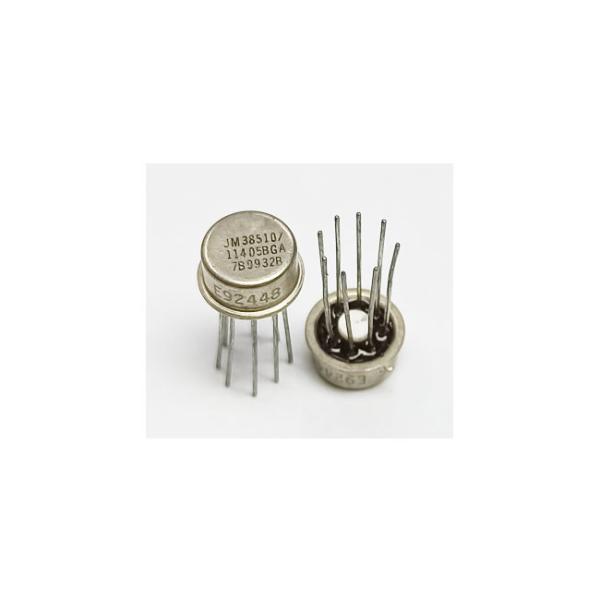

JM38510 11405BGA Operational Amplifiers Op Amp Integrated Circuit Chip PM156AJ6

Brand Name : original

Model Number : JM38510/11405BGA

Certification : ISO9001:2015standard

Place of Origin : original

MOQ : 10pcs

Price : Pls contact us

Payment Terms : T/T, Western Union,PalPay

Supply Ability : 10000pcs/months

Delivery Time : 1-3 workdays

Packaging Details : Standard

Mounting Style : Through Hole

Package / Case : TO-99-8

Packaging : Bulk

FPQ : 100

Output Current per Channel : 50 mA

Operating Supply Current : 7 mA

Contact Now

JM38510/11405BGA Operational Amplifiers - Op Amps PM156AJ6/38510 IC

GENERAL DESCRIPTION
This data sheet covers the electrical requirements for a mono-lithic, low-power, internally-compensated JFET-input opera-tional amplifier as

specified in MIL-M-38510/114 for device types 01 to 06. Devices supplied to this data sheet are manufac-tured and tested at PMI's MIL M-38510 certified facility and are listed in QPL-38510.

Complete device requirements will be found in MIL-M-38510 and MIL-M-38510/1 14 for Class B and Class S processed de-vices.

GENERIC CROSS-REFERENCE INFORMATION
This cross-reference information is presented for the convience of the user. The generic-industry types listed may not have iden-tical operational performance characteristics across the military temperature range or reliability factors equivalent to the MIL-M38510 device.

ABSOLUTE MAXIMUM RATINGS
Supply Voltage Range................土22V
Input Voltage Range (Note 1) ................. 土20V
Differential Input Voltage Range ................ 土40V
Lead Temperature (Soldering, 60 sec) .......... 300° C
Junction Temperature ............ Tj= 175°C (Note 3)
Storage Temperature Range ......... -65°C to + 150°C
Output Short-Circuit Duration ...... Unlimited (Note 2)

JM38510 11405BGA Operational Amplifiers Op Amp Integrated Circuit Chip PM156AJ6

Operational Amplifiers - Op Amps
RoHS: N
Through Hole
TO-99-8
1 Channel
+/- 20 V
-
50 mA
10 V/us
2 mV
+/- 5 V
- 55 C
+ 125 C
300 pA
7 mA
No Shutdown
85 dB
-
PM156S
Bulk
Amplifier Type: General Purpose Amplifier
Brand: Original in stock
Dual Supply Voltage: +/- 9 V, +/- 12 V, +/- 15 V, +/- 18 V
Height: 4.7 mm (Max)
Length: 9.4 mm (Max)
Maximum Dual Supply Voltage: +/- 20 V
Minimum Dual Supply Voltage: +/- 5 V
Pd - Power Dissipation: 330 mW
Product: Operational Amplifiers
Product Type: Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio: 85 dB
Factory Pack Quantity: 100
Subcategory: Amplifier ICs
Supply Type: Dual
Technology: BiFET
Type: General Purpose Amplifier
Voltage Gain dB: 80 dB
Width: 9.4 mm (Max)
Unit Weight: 0.274843 oz
