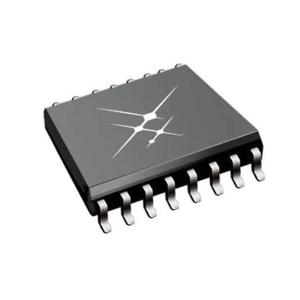

SI8622ED-B-IS Digital Isolator Power Management ICs 150Mb/S 5000 Vrms

Product Categories

Walton Electronics Co., Ltd.

Contact Now

Name: SI8622EDBIS Digital Isolator Power Management ICs 150MbS 5000 Vrms
Brand: original
Price: 1 USD

Brand Name : original

Model Number : SI8622ED-B-IS

Certification : ISO9001:2015standard

Place of Origin : original

MOQ : 10pcs

Price : Pls contact us

Payment Terms : T/T, Western Union,PalPay

Supply Ability : 10000pcs/months

Delivery Time : 1-3 workdays

Packaging Details : Standard

Mounting Style : SI8622ED-B-IS

Installation style : SMD/SMT

Package/Case : SOIC-16

Number of channels : 2 Channel

Polarity : Unidirectional

Data rate : 150Mb/s

Insulation Voltage : 5000 Vrms

Isolation Type : Capacitive Coupling

Supply Voltage - Maximum : 5.5 V

Supply Voltage - Min : 2.5 V

Operating supply current : 8.2 mA

Contact Now

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542330001
Automotive	No
PPAP	No
Type	General Purpose
Number of Channels per Chip	2
Maximum Data Rate	150Mbps
Maximum Rise Time (ns)	4
Maximum Fall Time (ns)	4
Minimum Pulse Width (ns)	5
Maximum Pulse Width Distortion (ns)	5
Maximum Propagation Delay Skew (ns)	5
Output Type	CMOS
Maximum Operating Supply Voltage (V)	5.5
Minimum Operating Supply Voltage (V)	2.5
Maximum Propagation Delay Time (tPHL) (ns)	14
Minimum Isolation Voltage (Vrms)	5000
Maximum Propagation Delay Time (tPLH) (ns)	14
Maximum Working Insulation Voltage	1200Vp
Maximum Quiescent Supply Current (mA)	10.6/11.4
Maximum Output Current Drive (mA)	10
Maximum Power Dissipation (mW)	150
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Typical Operating Supply Voltage (V)	5\|3.3
Forward/Reverse Channels	1月1日
Minimum Common Mode Rejection (kV/us)	35
Coupling Type	Capacitive Coupling
Supplier Package	SOIC W
Pin Count	16
Mounting	Surface Mount
Package Height	2.05(Min)
Package Length	10.3
Package Width	7.5
PCB changed	16
